MSI G4101-03 4U Liquid-Cooled GPU Barebone
MSI G4101-03 4U Liquid-Cooled GPU Barebone
GPU-ready 4U liquid-cooled AMD EPYC server barebone for AI training, inference, multi-GPU rendering, visualization and high-performance compute workloads. Designed for a single AMD EPYC 9004 / 9005 processor, 12-channel DDR5 memory, 12 hot-swap U.2 NVMe bays and up to four double-width PCIe GPUs.
This listing covers the barebone server platform only. CPU, memory, storage drives, GPUs, add-in cards and operating system are not included unless explicitly stated. Need a ready-to-run GPU system? We also offer custom builds with CPU, RAM, GPUs, NVMe storage, networking and software installation — message us for a quote.
Best For
Technical Specifications
| Form Factor | 4U Rack Server |
| Dimensions | 447.9 mm × 176 mm × 827.3 mm |
| Socket | 1× AMD Socket SP5 |
| CPU Support | Single AMD EPYC 9004 / 9005 Series, up to 500W TDP CPU compatibility may depend on BIOS version and final configuration. |
| Memory | 12× DDR5 DIMM, 12-channel 1DPC, RDIMM / 3DS-RDIMM, up to 6400 MT/s Memory speed and capacity depend on CPU and DIMM configuration. |
| GPU Support | Up to 4× double-width PCIe GPUs GPU compatibility depends on card dimensions, power connectors, airflow and final configuration. |
| Drive Bays | 12× hot-swap 2.5″ U.2 PCIe 4.0 NVMe |
| Internal Storage | 1× M.2 2280/22110 PCIe 3.0 ×4 · 1× M.2 2280/22110 PCIe 3.0 ×2 |
| Expansion | 4× PCIe 5.0 ×16 FHFL · 2× PCIe 4.0 ×16 FHFL PCIe 4.0 slots operate with ×8 signal. |
| Networking | 1× 1000Base-T dedicated management port No onboard data LAN. Add-in network card required for production networking. |
| Management | ASPEED AST2600 · AMI MegaRAC · IPMI 2.0 · Redfish API |
| Front I/O | 1× USB 3.2 Gen1 Type-A · Power / UID / Reset · Status LEDs |

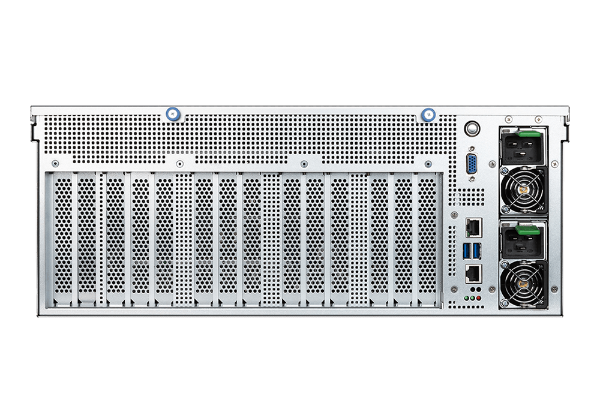

| Rear I/O | 1× MLAN RJ45 · 2× USB 3.2 Gen1 Type-A · 1× COM RJ45 · 1× VGA · UID |
| Security | TPM 2.0 header, SPI interface |
| Cooling | Liquid cooling module, up to 500W · 5× easy-swap chassis fans |
| Power Supply | 1+1 redundant 3000W CRPS, 80+ Titanium |
| Included | Barebone chassis, motherboard, liquid cooling module, redundant PSU and system fans |
| Operating Temp. | 0°C – 35°C operating · 5–85% RH non-condensing |
Specifications are provided for reference and may vary by final configuration. Contact us before ordering if you need a specific CPU, GPU, RAM, NVMe, network card or software setup validated.
We can supply this platform as a barebone unit or as a fully assembled GPU server with CPU, memory, GPUs, NVMe storage, networking and operating system installation.
Planning a larger AI, rendering or compute deployment? Send us a message with the desired quantity and configuration, and we’ll prepare a custom offer with professional invoicing.
